2009-2011 Dodge Ram 1500 Truck 4WD 4″ Lift Kit – 623H Handmade

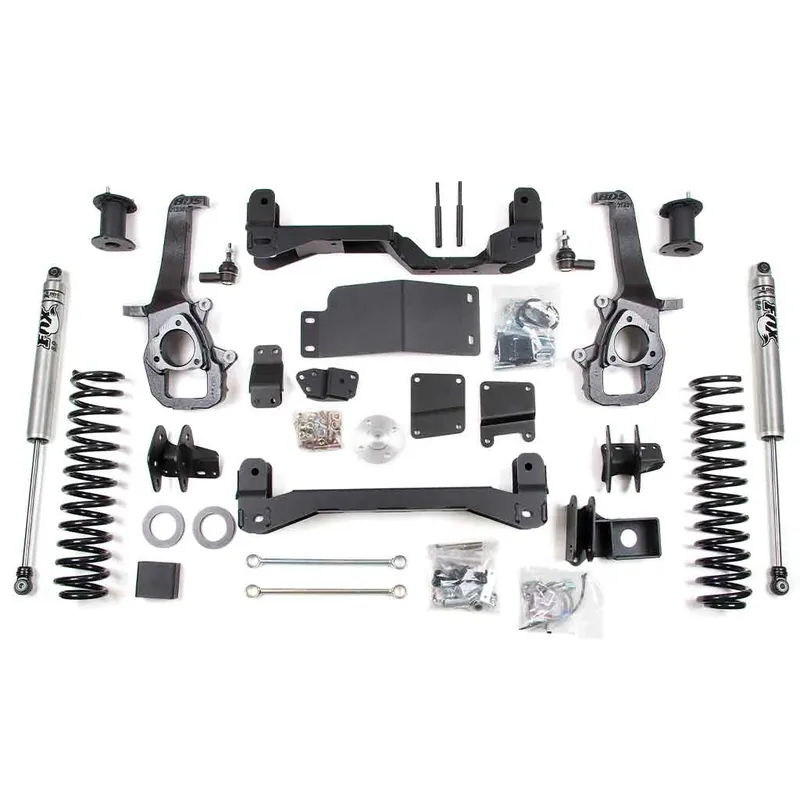

This 4" lift kit is based around two one-piece, 1/4" laser cut high clearance crossmembers and replacement steering knuckles. The high clearance crossmembers increase ground clearance for off road performance.The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.The rear is lifted via BDS exclusive 3" Pro-Ride coils that are capable of being smashed totally flat and will come back to normal ride height. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 2" rear coil spring spacer option is avaialbe depending on your desired stance.Check out more options and build your own kit by clicking on customize this kit.Tire & Wheel Combinations35" x 12.50" w/17 x 9 and 4-1/2" back spacing35" x 12.50" w/18 or 20 x 9 and 5" back spacing*Trimming may be required*Est. Installation: 10 hoursDifficulty Level (easy 1 – 5 complicated): 4Kit ComponentsQtyPart#Description102230909-18 Dodge 1500 3in Rear Box Kit102240106-10 Dodge 1500 4in Front Box Kt (3of4)102260506 Dodge 6" Box 4 Of 4102262006-10 Dodge 1500 6in Front Box Kt (1of4)102262106-10 Dodge 1500 6in Front Box Kt (2of4)285758NX² Shock Absorber
