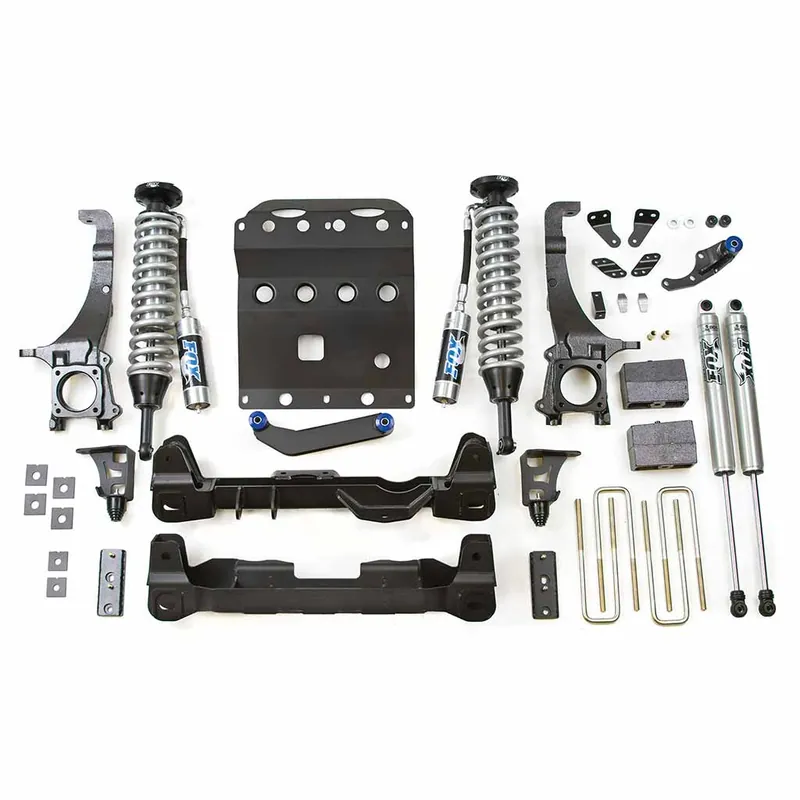

Time-Limited 2005-2020 Toyota Tacoma 4WD 6″ Coil-Over Lift Kit – 815F

These 6" performance coilover systems are designed to take your Tacoma to the next level to maximize performance and capability on and off-road. At the heart of system are FOX 2.5 factory series remote reservoir coilovers built to outperform the competition. These are pretuned for optimal performance and pre-set for correct ride height right out of the box. From there these kits utilize heavy duty front & rear crossmembers, full width belly skidplate and multipoint differential relocation brackets to create a solid subframe to mount the suspension components and improved offroad protection. These combined with the high strength ductile iron steering knuckles offer optional on-road handling with ESC System compatibility along with improved ground clearance for better offroad performance. Additionally this kit includes bump stop brackets, sway bar relocation, lower control arm cams and brake line brackets.In the rear 4" lift blocks are supplied along with longer u-bolts and brake line brackets to set the rear up and level out the stance. Finishing off the rear are FOX 2.0 performance series IFP gas shocks. This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model. Tire & Wheel Combinations35 x 12.50 w/18 x 9 and 4.5" Max. back spacingw/20 x 9 and 4.5" Max. back spacing*Trimming may be required*Est. Installation: 6-8 hoursDifficulty Level (easy 1 – 5 complicated): 3Kit ComponentsQtyPart#Description101840805-12 Tacoma 4in Rear Block Kit10286002005-2020 Toyota Tacoma Front Box Kit 1102860105-15 Tacoma Front Box Kit 2 of 4102860205-15 Tacoma Front Box Kit 3 of 4188302048Kit: BDS 05-20 Tacoma Front Coilover, 2.298224953Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
