Trending 2013-2018 Dodge Ram 3500 Truck 4WD w/ Rear 6″ 4-Link Lift Kit Diesel – 1648H

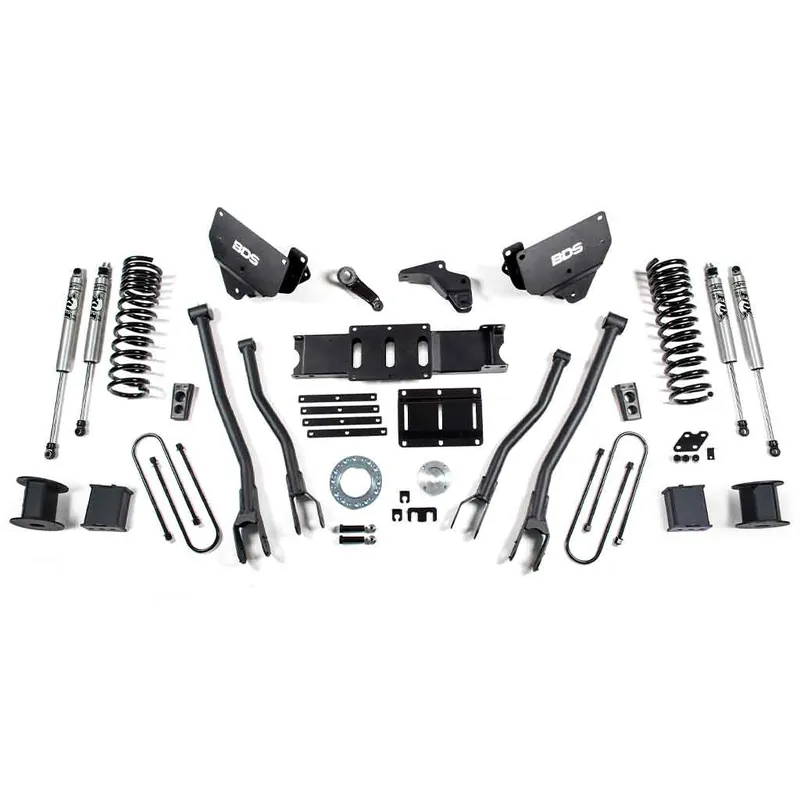

These lift systems are designed to convert the factory radius arm over to a stronger 4-link design offering improved stability, handling and articulation. The kit is designed with 1/4" fabricated 4-link brackets that key into the factory radius arm pockets for added strength. The 4-link design improves handling and drivability by limiting castor change to less than 1-degree throughout wheel travel. These kits also include 6" diesel engine specific progressive rate front ProRide coil springs, a heavy duty front track bar bracket, forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, high clearance transmission crossmember and transfer case indexing ring, rear block and u-bolt kit along with rear air bag lower spacers and sensor brackets. All kits are finished off with your choice of BDS NX2 or FOX 2.0 gas shocks at all 4 corners. These kits allow for up to 37" tires to be installed.Tire & Wheel Combinations37x13.50 w/17×9/18×9/20×9 and 5.625" back spacing37x12.50 w/17×9/18×9/20×9 and 4.5" back spacing*Trimming may be required*Est. Installation: 6-7 hours Kit ComponentsQtyPart#Description10124032013-2018 Ram 3500 4-Link Box Kit (2of2)10126042013 Ram 3500 6" 4-Link Box Kit (1of2)1012618Ram 3500 Auto Level Air Suspension 6" Re10326022013-2022 Ram 3500 – 2014-2022 Ram 2500112262313 3500/14 2500 Ram T-Case Index- 6 Bolt285752NX² Shock Absorber285769NX² Shock Absorber
